Intercomunicador análogo IP65 del laboratorio de la emergencia del G/M del SORBO con el telclado numérico lleno

Informacion basica
Lugar de origen: Shenzhen, China
Nombre de la marca: J&R
Certificación: CE, FCC, RoHS, ISO9001
Número de modelo: JR308-FK
Cantidad de orden mínima: 1 sistema
Precio: Reconsideration
Detalles de empaquetado: Algodón de la perla, cartón
Tiempo de entrega: 2-5 días laborables
Condiciones de pago: L/C, T/T
Capacidad de la fuente: 3000 sistemas por mes
Información detallada
Material: Acero inoxidable Garantía: 2 años
Protección de tiempo: IP55-IP65 Sin manos:
Tamaño de la unidad: 150*200*50 (milímetro) Peso: 2 kilogramos
Versión: Disponible en el análogo, VoIP, GSM/3G Fuente de alimentación: Línea de teléfono C.C. PoE de 12V
Alta luz:

Intercomunicador del laboratorio de la emergencia del G/M

,

Intercomunicador análogo del laboratorio de la emergencia del SORBO

,

IP65 da el intercomunicador libre del laboratorio


Descripción de producto





Product Description

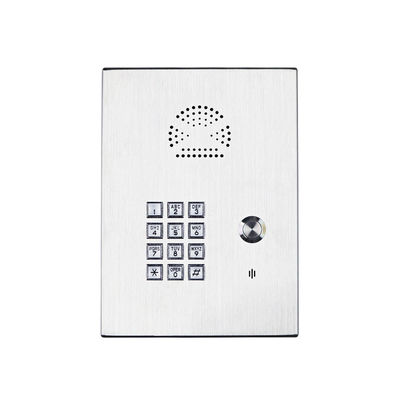

JR308-FK-IW High Quality Lab Intercom,Analog /SIP/GSM Emergency Hands-free Intercom with full keypad



JThe Vandal Resist Emergency Telephone is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking

operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.



Casing Material Stainless steel body
Colors RED, YELLOW, GREY
Handset Material No handset
Keypad

Rugged metal keypad

(Push button: Stainless steel button with IP65 rate)

Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

Weather Resistance IP65
Ringing Tone Shrill warble tone 80 dBA at 1 metre typical
Hook switch No hook switch
M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight Up to 2.5 kg depending on option





重型,防破坏金属电话















Technical Specification



High Quality Lab Intercom,Analog /SIP/GSM Emergency Hands-free Intercom with full keypad



重型,防破坏金属电话

坚固型电话,多功能电话



Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection Type IP 66 as per EN60529
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +75°C









Features



High Quality Lab Intercom,Analog /SIP/GSM Emergency Hands-free Intercom with full keypad



重型,防破坏金属电话





★ Stainless steel body - Strong impact resistance

★ Handsfree speakerphone - push button to connect rescue center

★ In wall mounting - simple installation

★ Vandal resistant full keyboard - can be programmed

★ Weather proof protection - up to IP65

★ Standard Analogue phone or SIP phone



★ Transients - Protection to ITU-T k.21 enhanced levels



★ CE,FCC,ROSH compliant - quality assurance



★ Flexible dial map, support hot-line









Applications



High Quality Lab Intercom,Analog /SIP/GSM Emergency Hands-free Intercom with full keypad



JR308-FK Elevator Telephone VoIP / Lift Emergency Telephone is suitable for use in airport, hospital, bank, ATM, campus,

lift/elecator , clean room, outside or outside building, etc.



坚固的户外防风电话











Packing & Delivery



High Quality Lab Intercom,Analog /SIP/GSM Emergency Hands-free Intercom with full keypad



重型,防破坏金属电话



Unit Size 200 *150 *52 (mm)
Carton Size 340 *235 *165 (mm)
Packaging Materials Pearl cotton, carton
Net Weight 2 KG
Gross Weight 3 KG









FAQ



High Quality Lab Intercom,Analog /SIP/GSM Emergency Hands-free Intercom with full keypad



Q: Do you have any MOQ limit?

A: Low MOQ, 1pc is available



Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.



Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.



Q: What’s the quality standard of your products?

A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.



Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q: Can you produce a product in a color of my choosing?

A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.



Q: Do you provide an installation service?

A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.



Q: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new one with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.



Q: How about the shipping?

A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days

2.Send by Air: Arrive at destination Airport fast then pick it up by yourself

3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
