Teléfono resistente del vándalo
Created with Pixso.

Teléfono ISO9001 de la emergencia del dial auto de 65VDC SIP2.0 con el microteléfono a prueba de vandalismo

Teléfono ISO9001 de la emergencia del dial auto de 65VDC SIP2.0 con el microteléfono a prueba de vandalismo

Nombre De La Marca: J&R
Número De Modelo: JR210-SC
MOQ: 1 pedazo
Precio: US$249-US$359
Condiciones De Pago: L/C, T/T, Western Union, Paypal
Capacidad De Suministro: 10000PCS por mes
Información detallada
Lugar de origen:
Shenzhen, China
Certificación:
CE, FCC, RoHS, ISO9001
tamaño:
300*180*161 (milímetro)
Color:
Rojo o modificado para requisitos particulares
Material:
Acero en frío
Función:
Comunicación
Instalación:
montaje en la pared
Volumen del campanero:
90~95dB (A) en una distancia de 1 m
Temperatura:
Funcionamiento: -30°C a +65°C
Grado de la protección del ingreso:
IP54-IP65
Garantía:
2 años
Peso neto:
4 kilogramos
Detalles de empaquetado:
Embalaje estándar de J&R, algodón de la perla, cartón
Capacidad de la fuente:
10000PCS por mes
Resaltar:

Teléfono de la emergencia del dial auto SIP2.0

,

Teléfono de la emergencia del dial auto 65VDC

,

Teléfono al aire libre de la emergencia de ISO9001 PoE

Descripción del producto

Product Description

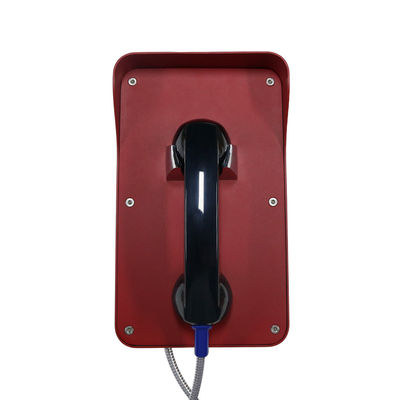

JR210-1B  RED Outdoor emergency swimming pool phone with vandal-proof handset









Handset Telephone,One button for speed dial,Cold-rolled steel body,Red color(other colour on demand),

Unit size:300*180*161(mm)

Housed in a anti-vandal cold-rolled steel enclosure,wall-mounting

Heavy Duty, Vandal Resistant Metal Telephones





Analogue Version
   Power Supply From the analogue telephone network
   Supply Voltage 24 VDC to 65 VDC
   Supply Current 20 mA DC to 100mA DC
   Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
   Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
   Power Supply PoE or 12VDC
   Power Consumption -Idle:1.5W
-Active:1.8W
   SIP Protocol SIP 2.0 (RFC3261)
   Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
   Communication Type Full duplex
   Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
   Protection Type IP66 as per EN60529
   Operating Temperature -30°C to +70°C
   Storage Temperature -40°C to +75°C







Features

JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset





   ★ Robust housing, constructed of stainless steel or cold-rolled steel

   ★ Vandal resistant handset and armored cord

   ★ Surface mounting, simple installation

   ★ Easy to spot - bright color

   ★ Ingress protection rating - up to IP65

   ★ Phone line powered for Analog phone







Applications

JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset





JR210-SC Hotline Telephone for Taxi Server more commonly used in parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.



Teléfono ISO9001 de la emergencia del dial auto de 65VDC SIP2.0 con el microteléfono a prueba de vandalismo 1







Customised Accessories

JR210-1B RED Outdoor emergency swimming pool phone with vandal-proof handset




Teléfono ISO9001 de la emergencia del dial auto de 65VDC SIP2.0 con el microteléfono a prueba de vandalismo 2



J&R provide LOGO printing and accessories customization services.

We will also provide suitable solutions according to the needs of customers.



HOOK FUNCTIONMagnetic hooks for choice

KEYBOARD SHAPE: Round buttons and square buttons for choice

INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice

HADSET CORDBlack curly handset cord or stainless steel spiral cord

If you have any custom requirements, please feel free to contact us.
