| Lugar de origen: | Shenzhen, Guangdong, China |
|---|---|
| Nombre de la marca: | J&R |
| Certificación: | CE, FCC, RoSH, ISO9001 |
| Número de modelo: | JR202-FK |
| Cantidad de orden mínima: | 1 |
| Precio: | US$119 - US$250 |
| Detalles de empaquetado: | algodón de la perla, cartón |
| Tiempo de entrega: | 3-5 días laborables después del pago |
| Condiciones de pago: | L/C, T/T, Western Union, Paypal |
| Capacidad de la fuente: | 3000 sistemas por mes |
| Material: | Acero en frío o acero inoxidable | Color: | Gris, amarillo, rojo o arreglo para requisitos particulares |
|---|---|---|---|
| Protección del ingreso: | IP55-IP65 | Microteléfono: | Material del ABS con el cordón acorazado |
| Tamaño: | 247 *130 *132 (milímetros) | Accionado: | línea telefónica accionada o DC12V |
| Versión: | analogue/SIP/GSM | Garantía: | 2 años |
| Alta luz: | Teléfono resistente del vándalo del G/M SS,Teléfono resistente del vándalo del CRS,Teléfono a prueba de vandalismo del cordón espiral |
||
Detailed Presentation

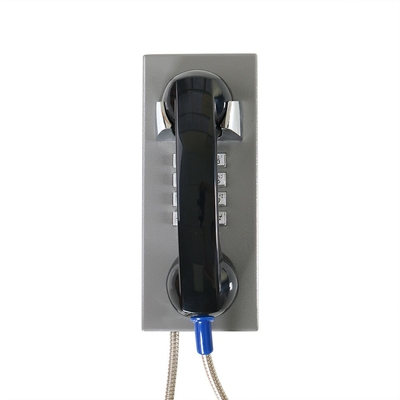

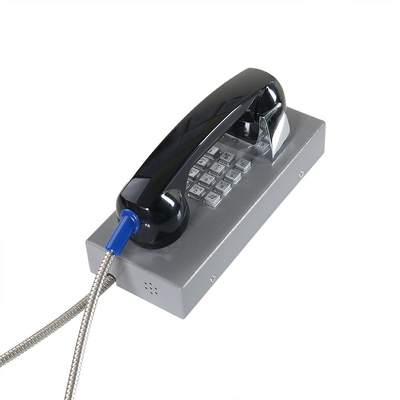

JR202-FK Stainless Steel IP65 Prison/bank public telephone Vandal Resistant Telephone supplier
JR202-FK Vandal Resistant Telephone ihas the characteristics of simple installation, easy handle, stable operation and strong compatibility. Phone accessories and phone shell color can be customized.
The telephone adopts stainless steel panel with strong vandal proof feature. The handset, keypad, circuit board and other accessories are made of multi-layer waterproof and dustproof materials.
| Casing Material | Robust Cold-rolled steel body (CRS) |
| Colors |
Color Optional,Gray as standard |
| Handset Material | ABS material handset with stainless steel spiral cord |
| Keypad |
Weather sealed tactile digital keypad. Chrome key and frame made of zinc alloy. Vandal resistance. |
| Temperature |
Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Weather Resistance | IP65 |
| Ringing Tone | Shrill warble tone 85 dBA at 1 metre typical |
| Hook switch | Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 4 kg depending on option |
Technical Specification
Stainless Steel IP65 Prison/bank public telephone Vandal Resistant Telephone supplier
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
| Unit Size | 240 *100 *106 (mm) |
| Carton Size | 340 *235 *165 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 2.7 KG |
| Gross Weight | 3 KG |
Applications
JR202-FK Vandal Resistant Handset Telephone is suitable for tunnel, railway, underground mine, prison, guard room, bank and many other areas.
Customised Accessories
J&R provide LOGO printing and accessories customization services.
We will also provide suitable solutions according to the needs of customers.
HOOK FUNCTION: Magnetic hooks for choice
KEYBOARD SHAPE: Round buttons and square buttons for choice
INDICATOR LAMP COLOR: Red, yellow, blue, green for choice
MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice
HADSET CORD: Black curly handset cord or stainless steel spiral cord
If you have any custom requirements, please feel free to contact us.
