| Lugar de origen: | Shenzhen, China |
|---|---|
| Nombre de la marca: | J&R |
| Certificación: | CE, FCC, RoHS, ISO9001 |
| Número de modelo: | JR206-FK |
| Cantidad de orden mínima: | 1 sistema |
| Precio: | US$189~US$299 |
| Detalles de empaquetado: | algodón de la perla, cartón |
| Tiempo de entrega: | 2-5 días laborables |
| Condiciones de pago: | L/C, T/T, Western Union |
| Capacidad de la fuente: | 3000 sistemas por mes |
| Material: | Acero en frío | Color: | Bule, u opcional |
|---|---|---|---|
| Garantía: | 2 años | Protección de tiempo: | IP65 |
| Microteléfono: | Material del ABS con el cordón acorazado | Telclado numérico: | Telclado numérico rugoso y durable lleno |
| Botón del control de la voz: | Sí | Vándalo resistente: | Sí |
| Alta luz: | Teléfono resistente del vándalo rugoso del telclado numérico,Teléfono resistente Robuste del vándalo,Teléfono de emergencia de acero en frío |
||
Product Description

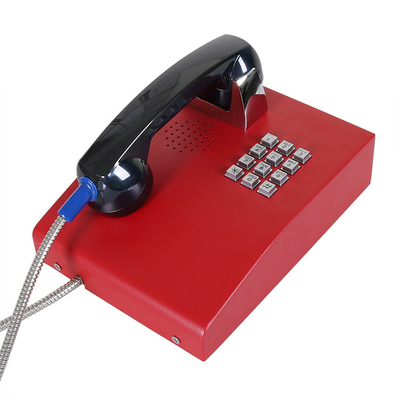

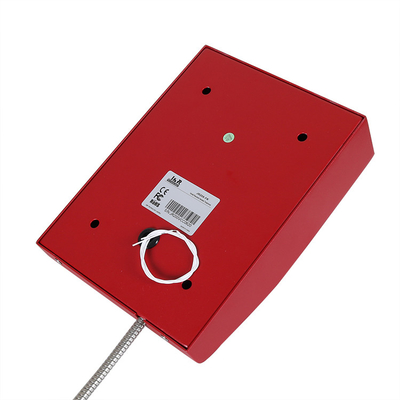

JR206-FK Bank Service Digital Keys Telephone, Cold Rolled Steel Robuste Vandal Resistant Telephone
JR206-FK Robuste Telephone, Multi-function Telephone housed in cold rolled steel box so that the telephone has anti-vandal characteristics.
JR206-FK is equipped with industrial grade noise reduction handset and waterproof metal full keyboard.
The telephone supports wall mounting and desk mounting.
The color and function of the phone can be customized according to customer needs.
| Casing Material |
Cold rolled steel body |
| Colors | RED, YELLOW, GREY |
| Handset Material | ABS material handset with stainless steel spiral cord |
| Keypad |
Weather sealed tactile digital keypad. Chrome key and frame made of zinc alloy. Vandal resistance. |
| Temperature |
Operating: -30°C to +70°C Storing: -40°C to +75°C |
| Weather Resistance | IP65 |
| Ringing Tone | Shrill warble tone 80 dBA at 1 metre typical |
| Hook switch |
Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 4 kg depending on option |
Technical Specification
Bank Service Digital Keys Telephone, Cold Rolled Steel Robuste Vandal Resistant Telephone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
Features
Bank Service Digital Keys Telephone, Cold Rolled Steel Robuste Vandal Resistant Telephone
Applications
Bank Service Digital Keys Telephone, Cold Rolled Steel Robuste Vandal Resistant Telephone
JR206-FK Robuste Telephone, Multi-function Telephone suitable for use in park, roadside, bank, ATM, campus, stadiums, jail, outside or outside building, etc.
Packing & Delivery
Bank Service Digital Keys Telephone, Cold Rolled Steel Robuste Vandal Resistant Telephone
| Unit Size | 248 *185 *129 (mm) |
| Carton Size | 230 *200 *150 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 2.5 KG |
| Gross Weight | 3.5 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
